— OVERVIEW —
Automatic Smart Grid Solutions – Pioneering Smart Grid Technology

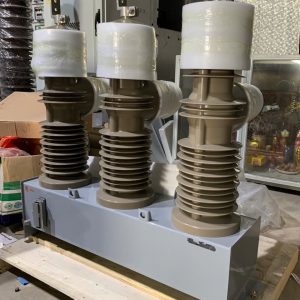

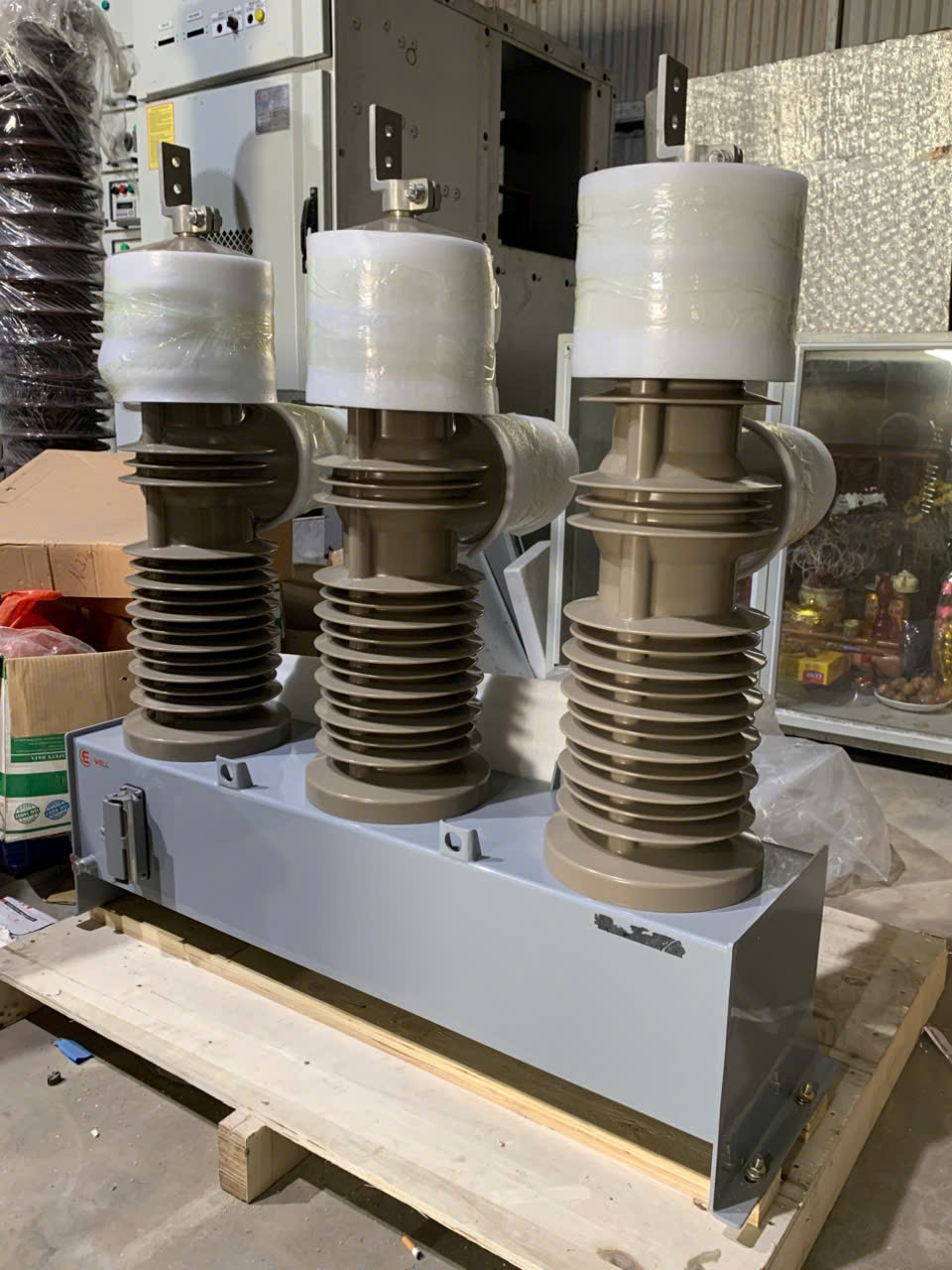

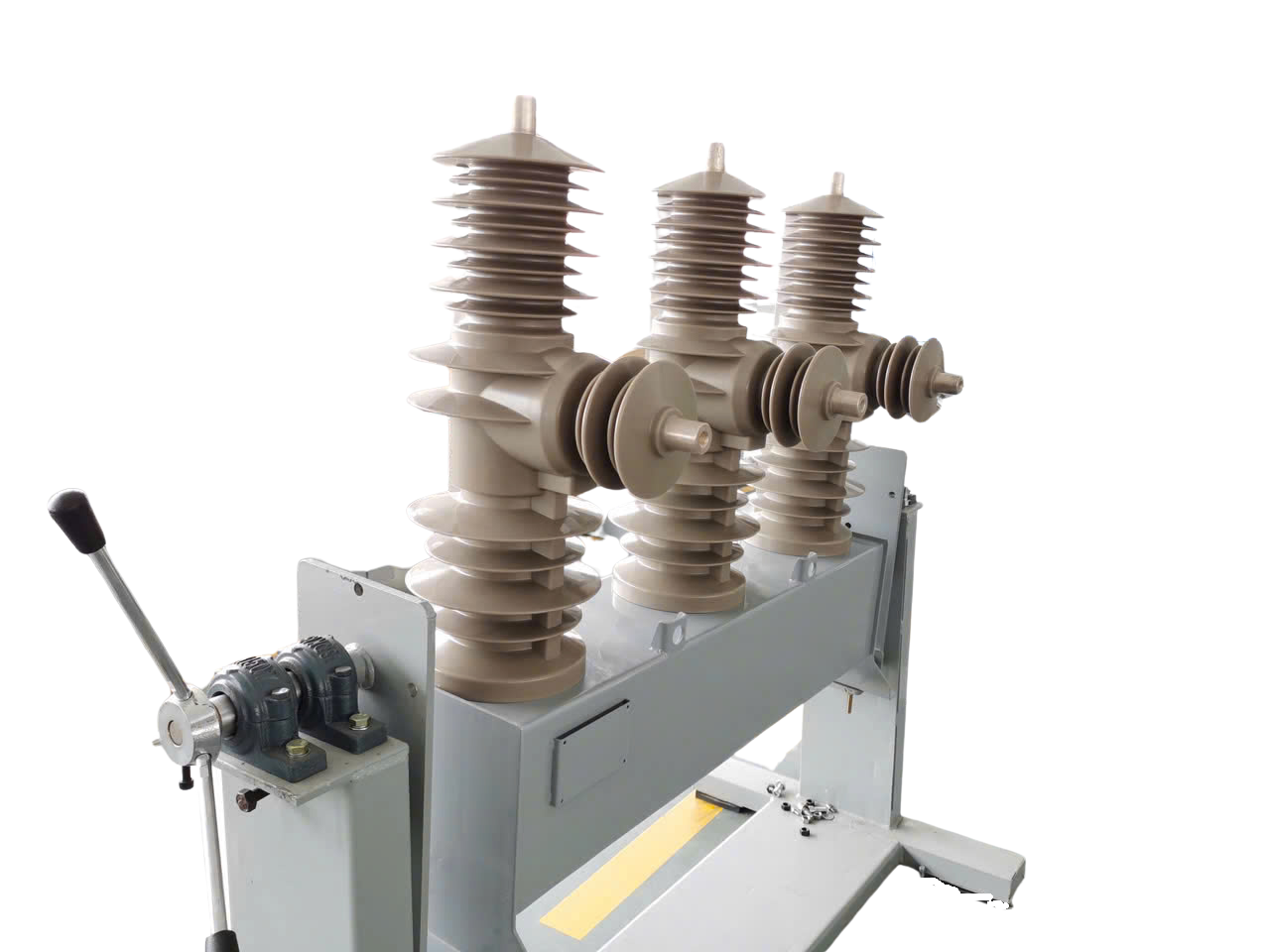

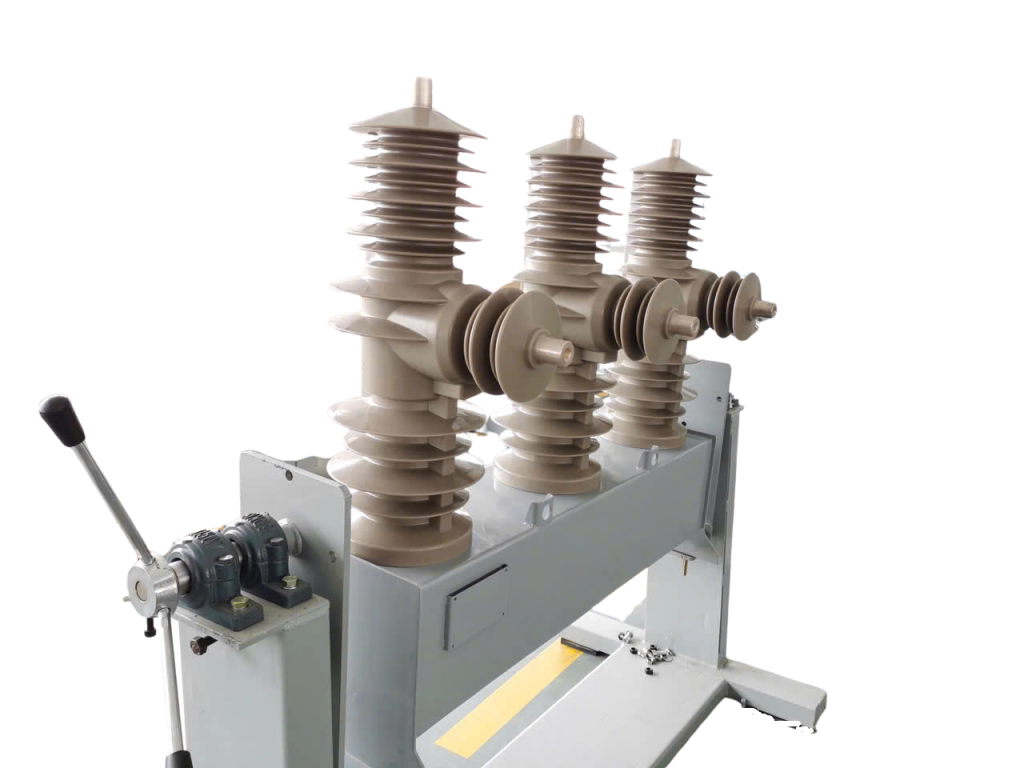

The EW Series automatic recloser with advanced solid insulation technology – the perfect solution for modern power distribution systems, ready to integrate into the future smart grid.
— KEY FEATURES —
Built with solid epoxy resin insulation and vacuum switching technology, the EW Series eliminates the need for additional remote terminal units, power supplies, or enclosures. The integrated RTU and communication ports are included as standard equipment, significantly reducing both installation and operating costs. The stainless steel enclosure ensures long service life with minimal maintenance requirements, while DSA/SCADA compatibility enables remote control and monitoring capabilities.
— BENEFITS —
The integral protection relay ensures fast fault clearance while monitoring line current and voltage without additional measurement devices. This data enables forward planning and optimization of existing feeders. Designed for pole mounting with complete mounting brackets included, the EW Series offers simple commissioning through software configuration or operator interface.
This is a simple headline
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
— TECHNICAL SPECIFICATIONS —
| Parameter | EW-27 | EW-38 |
|---|---|---|
| Rated Voltage | 27 kV | 38 kV |
| Maximum Voltage | 31.0 kV | 42.0 kV |
| Rated Current | 630 A | 630 A |
| Interrupting Current | 16 kA | 16 kA |
| Short Circuit Current | 16 kA | 16 kA |
| Insulation Type | Solid Epoxy Resin | Solid Epoxy Resin |
| Switching Technology | Vacuum Interrupter | Vacuum Interrupter |
| Operation Mechanism | Magnetic Actuator | Magnetic Actuator |
| Controller | FTU-BC561 | FTU-BC561 |
| Auxiliary Supply | 115/230 VAC | 115/230 VAC |
| Enclosure Material | 304/316 Stainless Steel | 304/316 Stainless Steel |
| Mounting | Pole Mount | Pole Mount |
| Protection Class | IP65 | IP65 |
| Operating Temperature | -40°C to +60°C | -40°C to +60°C |
